Hammer Mill for Powerful Dismantling Solutions
Hammer mills are versatile machines used in various industries. The mills we offer are ideal for breaking apart various metals in order to separate and clean. We have mills able to process small materials like PCBs and E-Waste to cast aluminum, motors, and meatballs.
At Solid Equipment Company, we understand the importance of efficiency and productivity in shredding operations. That’s why we bring you high-quality, robust industrial hammer mills engineered with advanced technology and precision to ensure optimal performance. We can advise an application sized hammermill for your application with the downstream equipment to follow.
New and Used Hammer Mills
We offer a comprehensive selection of new and used hammer mill machines to cater to your specific requirements and budget.
Upgrade your pulverizing capabilities with the range of recycling equipment from Solid Equipment Company. Explore our range of hammer mills today and unlock the efficiency and precision you need for your processing operations.
Industrial Hammer Mills for Sale
At Solid Equipment Company, we offer the following hammer mill equipment:

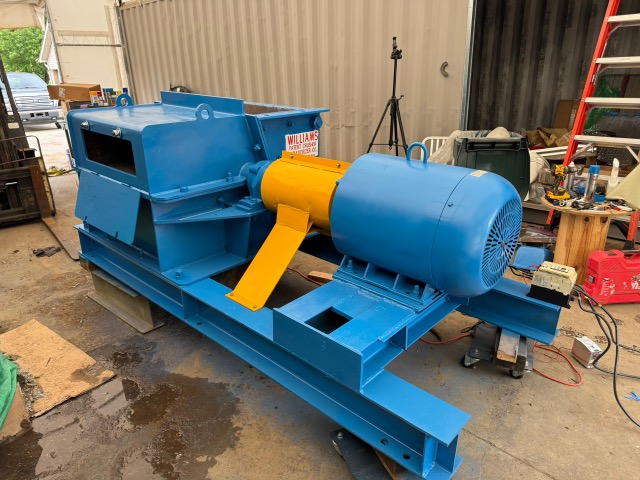

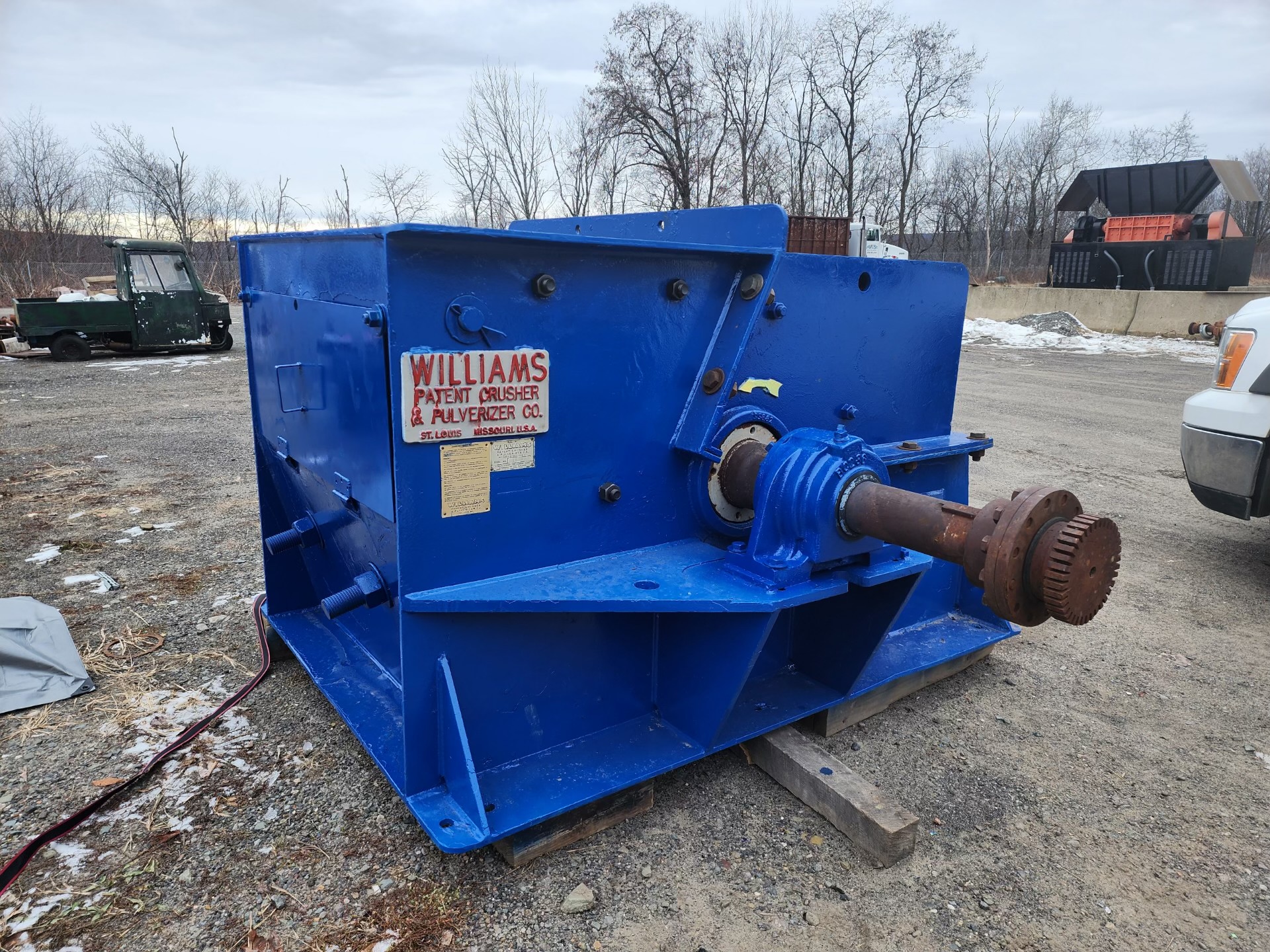

200 HP Williams Hammermill
200hp Williams Crusher Hammer Mill Shredder w/ Steel Foundation
Model 40KS
SN-17681
45lb Hammers
30″x40″ Solid Spider Rotors
Top Feed Hopper
Screen Size: 1 1/2″ x 3″
200hp World Energy Electric Motor
RPM: 1,175
Frame Size: 505UZ
3 Phase – 460v – 246amp
*No Panel Included*
Mill is in excellent condition, and was used up until the day the company closed the door. Hammers were replaced last year, and show very little sign of wear.
Can shred metals such as light iron/tin, electric motors, dirty aluminum, cast, etc.
*PLEASE NOTE*
The “catwalk” around this have been cut off due to oversized trucking limits.
FOB PA
Thor Mobile Hammermill Shredder – 1500HP Model 2121K
(Video below, pulled from ZB Group site)
ZB Group – Thor 2121 Mobile Shredder
4400 hours
Unit process 20-30 tons/hr
Has 6” x 8” grates- consistently makes a 4-5” shred
Mainly processed engines and transmissions
TRACK ASSEMBLY (TRACKS)
FEED SYSTEM
Tilting ramp
• Width: (83’’)
• Length: (23.00 ft)
• Loading length: (15.00 ft)
FEED ROLLER
• Diameter: (28’’)
• Lifted by hydraulic cylinders
• Rotation powered by hydraulic motors
SHREDDER OR HAMMER MILL
• FRZB-2121 shredder or hammer mill
• Internal width: (83’’)
• Hammer weight: (230 lb)
• Replaceable grates
• Equipped with anvils
• Rotor diameter with hammers in working position: (83’’)
• Rotor liftable along with the upper frame
• Hydraulic non-crushable gate
• Transmission via cardan shaft
SHREDDER DISCHARGE CONVEYOR
• Reinforced rubber belt
• Width: (63’’)
• Length: (18.00 ft)
• Discharge height: 2.60 m (8.50 ft)
• Hydraulic drive
HYDRAULIC HAMMER EXTRACTOR
REMOTE CONTROL
• Includes control for the operation of the tilting ramp
• Includes control for the operation of the feed roller
• Includes control for the operation of the non-crushable gate
WEIGHT AND DIMENSIONS
• Length: (61.00 ft)
• Height: (20.00 ft)
• Weight: (255,000 lbs)
Includes:
– Feed and Discharge conveyors
– mobile power unit
– magnetic separation unit
-manual sorting conveyor and radial stacking conveyor
– non ferrous shredder scrap conveyor
– metals separation unit which includes eddy current -feed hopper/vibrating feeder/conveyor
Unit can be seen in operation.
Can be factory removed and re-installed at an additional price
FOB TX
SOLD – American Pulverizer Ringmill
(WATCH VIDEO BELOW)
300HP
Still hooked up to power
Customer processed meatballs, palm transformers, shredder pickings, and asrw.
Ring and pins will be replaced prior to shipping

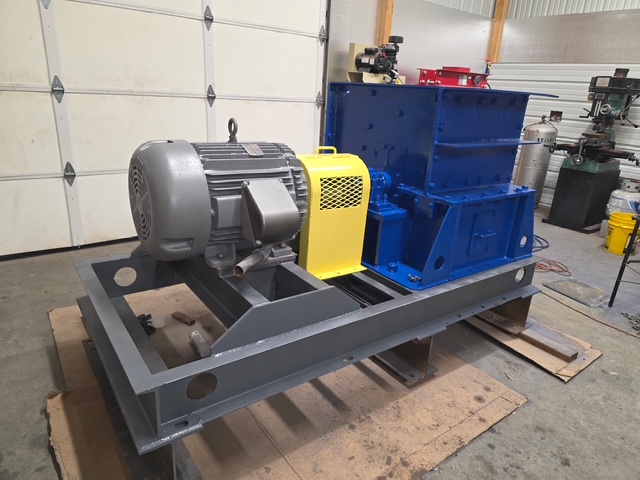

Hammer Mill
Standard features:
- Made in the USA
- Complete and ready to run. Includes hammer mill, inlet chute, belts, motor, full enclosure guards, all integrated on a steel skid
- Robust construction with long-wearing chrome hammers, AR-400 abrasion-resistant protective liners and screens
- Sizes: 16 inches by 12 inches through 30 inches by 24 inches (diameter by width) (up to 100 HP)
- Discharge size: varies from powder up to 3-inch minus
- All wear and replacement parts are in stock
- Most machines are in stock for quick delivery
Contact us at 866-948-5406 to speak with our knowledgeable team and find the perfect hammer mill for your business.
Frequently Asked Questions
Hammer mills are commonly used size reduction machine consisting of a series of hammers (usually four or more) hinged on a focal shaft and encased securely within a rigid metal case.
Choosing the right hammer mill depends on the type of material you need to reduce, the desired particle size, and your specific requirements. At Solid Equipment Company, our knowledgeable team can assist you in selecting the ideal hammer mill for your application. By understanding your needs and providing expertise, we can help you find the hammer mill that delivers the required performance and efficiency.
Yes, at Solid Equipment Company, we offer a comprehensive selection of new and used hammer mills. We understand that budget considerations are important, so we provide cost-effective used options without compromising on quality. Whether you prefer a brand-new hammer mill or a reliable used one, we have you covered.
