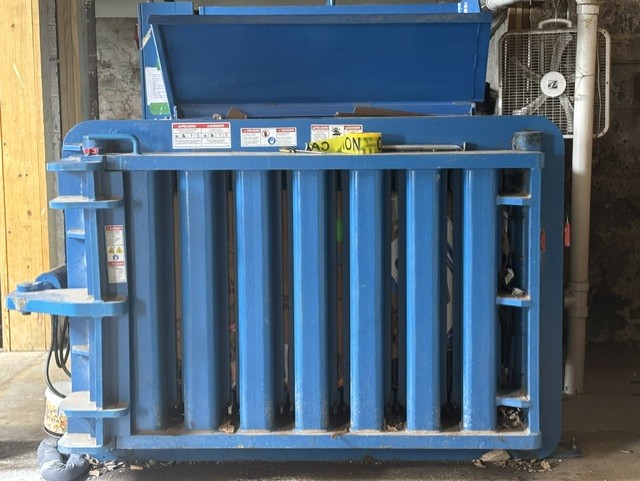

Harris Piranha- Closed Door Baler

Year: 2015

Automatic Closed Door Baler

Used by a municipality for OCC only. Less than 200 tons/yr which comes out to a baler every few days.

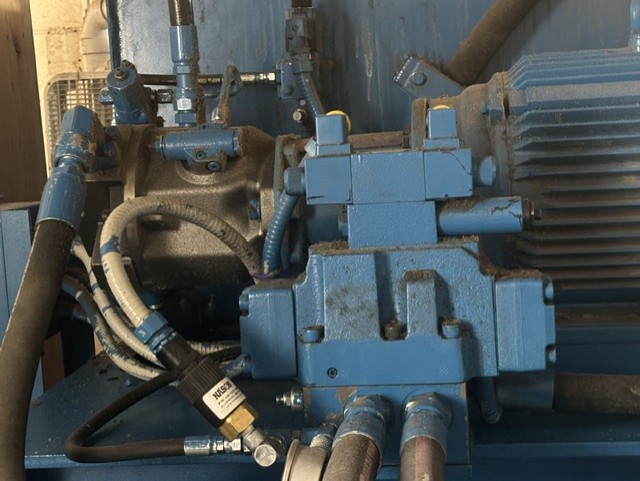

Recently installed a new REXROTH pump and pressure switch. Door cylinder recently replaced.

serial # is 021570861

Bale Size: 48 in. wide x 30 in. high x 60 in. long

Bale Volume: 54 cubic feet expanded (approximate)

Cycle Time: 29 Seconds (No Load)

Charge Box Opening: 36 in. x 56 in.

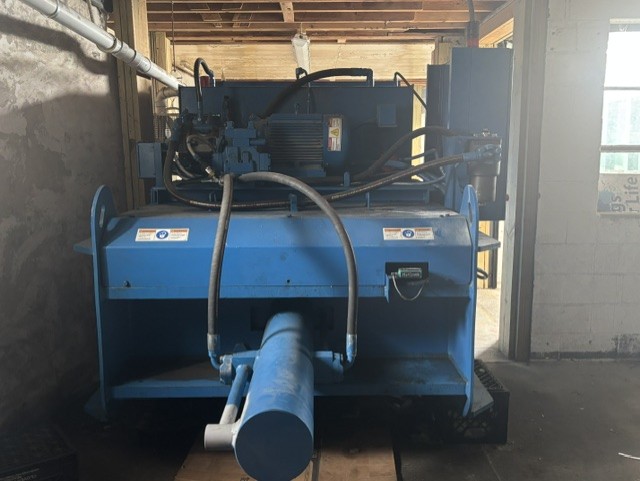

Hydraulics:

Main Pumps: 34 GPM

System Pressure: 5000 PSI

Main Cylinder: 7″ Bore, 85″ Stroke, 6″ Rod

Ram Face Pressure: 110 PSI

Overall Platen Force: 192,448 Lbs

Oil Reservoir: 102 Gallons Capacity

Filtration: Replaceable 5 Micron Cartridge

Pressure Filter

Hydraulic Door Latch Installed

Main Motors: 20 HP Tri-voltage Supply Selection

Enclosure: NEMA 12 Rated

Motor Type: TEFC, High Efficiency, Across the Line Starting is Standard

Controls: UL and CUL Listed, Allen Bradley

Programmable Controller. Push buttons and switches on main panel. Remote ram advanced and retract at manual wire tie location.

Hopper Photoeye: Infrared Type, 0-15

Second Adjustable Time Delay

Standard Voltage: 460V, 3 – Phase, 60 Hz

Main Frame: Heavy Duty Reinforced Plate Construction

Floor: Replaceable ½” thick abrasion resistant tongue and groove wear liners.

Platen: Replaceable abrasion resistant wear liner on base of Platen.

Shear Knife: Tapered Serrated “V” Blade, AR Steel

Shipping Weight: 11 Tons Approximately

Located in PA

Can be seen in operation. Will be available in 2-3 weeks once new baler is installed.
