CATERPILLAR GENERATOR
Caterpillar Unit with 1310 HP
Serial number 35B3018 with 174 hours
Formerly used as a back up generator for a 42 story building in New York.
Shop
Cram-A-Lot Baler Item#205
Cram-A-Lot Vertical Baler
The DX-60-8 model features an 8″ cylinder and is ideal where high density performance is desired baling boxes, aluminum cans, plastic bottles, or shrink film.
Model: DXR-60-8
Serial #: BD15951-08
Date Of Mfg: 8/10/2011
Nominal Bale Size: 60”W x 30”D x 48”H
Bale Weight Up To (OCC): 1,400 lbs
Cycle Time (Average) 58 sec
Platen Force Normal 100,500 lbs
Max 120,600 lbs
Platen Face Pressure Normal 57.8 psi
Max 69.4 psi
Motor 3 phase 208/230/460 VAC 15HP
Pump Capacity 12 gpm
Hydraulic Reservoir Capacity 33 gal
Hydraulic Cylinder Bore Dia. 8”
Stroke 54”
Rod Dia. 5”
Operating Pressure Normal 2,000 psi
Max 2,400 psi
Dimensions Overall Height Installed 12’7”
Frame Height 8’10”
Overall Width 6’2”
Overall Depth with Door Closed 3’1”
Overall Depth with Door Open 8’3”
Loading Height 57”
Feed Opening Height 20 ½”
Unit Weight 6,000 lbs
The DX-60-8 model features an 8″ cylinder and is ideal where high density performance is desired baling boxes, aluminum cans, plastic bottles, or shrink film.
Model: DXR-60-8
Serial #: BD15951-08
Date Of Mfg: 8/10/2011
Nominal Bale Size: 60”W x 30”D x 48”H
Bale Weight Up To (OCC): 1,400 lbs
Cycle Time (Average) 58 sec
Platen Force Normal 100,500 lbs
Max 120,600 lbs
Platen Face Pressure Normal 57.8 psi
Max 69.4 psi
Motor 3 phase 208/230/460 VAC 15HP
Pump Capacity 12 gpm
Hydraulic Reservoir Capacity 33 gal
Hydraulic Cylinder Bore Dia. 8”
Stroke 54”
Rod Dia. 5”
Operating Pressure Normal 2,000 psi
Max 2,400 psi
Dimensions Overall Height Installed 12’7”
Frame Height 8’10”
Overall Width 6’2”
Overall Depth with Door Closed 3’1”
Overall Depth with Door Open 8’3”
Loading Height 57”
Feed Opening Height 20 ½”
Unit Weight 6,000 lbs
Cross Belt Magnets
The new ElectroMax Overband Magnetic Separator provides customers with a smaller, lighter, and more compact system without any compromise in separation performance. This low profile, air cooled electromagnetic conveyor meets the ever-increasing demand for high-powered, light, and compact electro magnets.
Deltax Alligator Shear Item#155
Deltax Alligator Shear
Model No. DTX-680
Single Phase: 3 HP / Three Phase:
5.5 HP Speed
Single Phase: 7 1/2 – 30 cuts/min.
Three Phase: 15 – 60 cuts/min.
26 3/4″ Blade Length
2″ – 11 3/4″ Blade Opening
55 Ton Max Shear Force
60 3/8″ L x 30″ W x 47 1/2″ H
30 Gallon Oil Capacity
Blade Table Height: 31 1/4″
Shear Capacity: 30 (1 3/16″) Steel Round Bar 45kg/mm
Eddy Current Item# 115 SOLD!!!
30″ LGI Eddy Current Separator
Comes with Steel Base
Control Panel
Extra belt and rotor sheave
Concentric Rotor
Runs and works
Used to separate 2″+ copper, aluminum, stainless, and brass pieces from waste in a scrap metal shredder downstream.
Eddy Currents
High Quality and Low Maintenance Eddy Current Separator
Separates small aluminum chips from shredded and ground plastic flake materials.
Electro Adda Motor
Electro- Adda Motor
This motor was a spare for a single shaft pre-shredder for a wire granulation system. Never Used.

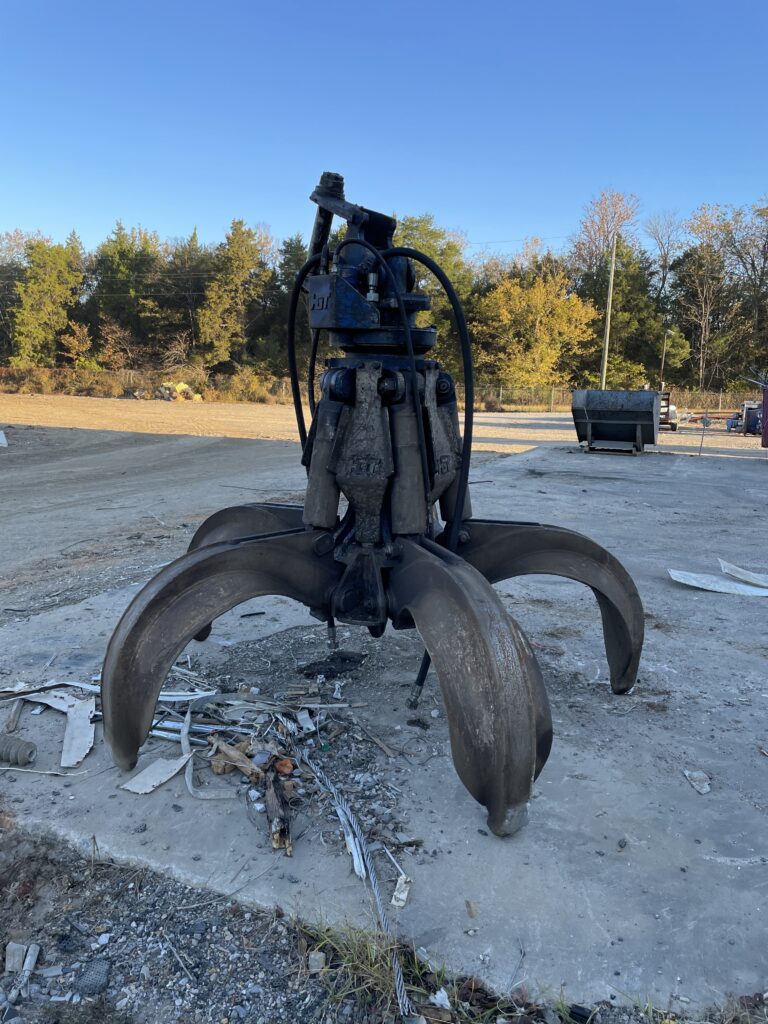

HGT Orange Peel Grapple Item#143
HGT Orange Peel Grapple
Used on a Fuchs 340d
3/4 yard 5 tine
Unit functions fine but does have a leak around the swivel
Extreme Heavy Duty Buckets & Super Heavy Duty Buckets
These buckets are designed for the worst winter and mining conditions. They are made entirely of extremely wear-resistant materials and are assembled with great precision. They are ideal for use with soil that has been mined or blasted. The super heavy duty buckets feature reinforced sides, lateral protectors, anti-wear plates, protective heels, a v-shaped blade, and tooth space width.
Each part is preheated to the recommended temperature and the heat is controlled at the time of welding to provide unrivalled resistance. GRYB super heavy duty buckets are subject to numerous quality tests and are approved by an engineer.
The bolted wear parts are easily interchangeable. The safety factor is four times the maximum strength of the excavator. The bucket allows for loading and dumping at an optimized angle.

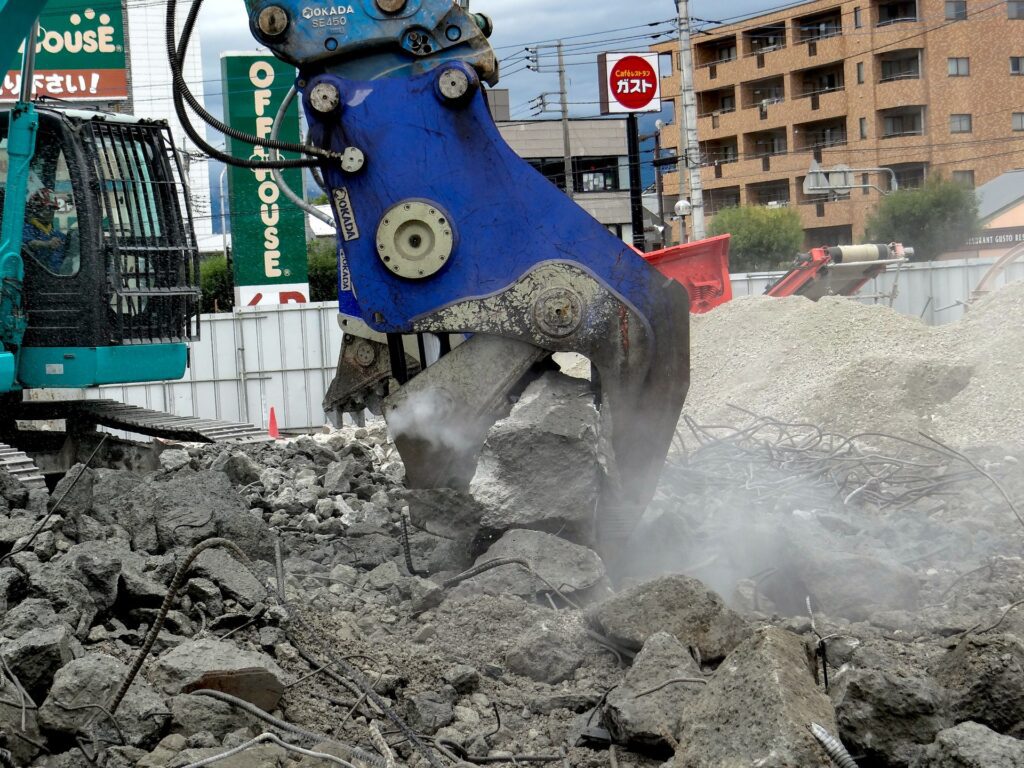

Factory Reconditioned Concrete Pulverizer
Secondary breaking crushers were developed as a result of a growing need to reduce disposal volume and recycle concrete waste created during concrete building demolition. The flat, wide jaw design and an internal speed valve make it possible to grab and crush large sections of concrete quickly.
Factory Reconditioned Trommel Bucket
Factory Reconditioned TMB 70 Trommel Bucket
6 month factory warranty included.
The Trommel Bucket separates C&D debris out of soil and sand, gravel and aggregates out of soil, non-flammable material from ashes at incinerator, stones out of excavated material and more.
The compact design and tough frame structure of the trommel bucket (TMB) make this attachment lightweight and easy to operate. A built-in control valve regulates flow and pressure to the TMB, eliminating the need for costly plumbing on the carrier excavator. A double-acting single pump flow kit used to run a thumb, crusher or shear is all that is needed to achieve two-way rotation. The in-body control valves allow the drum rotation speed to be fine-tuned for smooth operation in a variety of applications.
A double-acting single pump flow kit used to run a thumb, crusher or shear is all that is needed to achieve two-way rotation. The in-body control valves allow the drum rotation speed to be fine-tuned for smooth operation in a variety of applications.
