Sherbrook OEM Steel Z-pan Conveyor
Sherbrook OEM Steel Z-pan conveyor
USED Sherbrook OEM Steel Z-pan conveyor- 48” wide 15HP. Ran #1-#7 plastics. Been sitting outside for 2 years.
-
-
- Shipping info: 38,000 pounds; legal height and weight on lowboy; 10’ wide at motor & gearbox
- Rods, pins, bushings replaced less than 2,000 prior to service.
- Manufacturer refurbished belt, rails, and liners less than 1,000 hours prior to removal from service.
-
Motors and gearbox guaranteed in working order
SSI Dual Shaft Shredder with Hopper
Used SSI Dual Shaft Shredder with Hopper
Model 1200E
SN 50872
Made 1/1996
Start Clearance 0.125 in
Cutter to Cutter Clearance 0.010 in
Cutter Diameter 12.5 in
Cutter Thickness 1.00 in
Cutting Chamber Width 25 in
Cutting Chamber Length 52 in
Cutting Chamber Height 13.13 in
Discharge Width 25 in
Discharge Length 58 in
Overall Width 46 in
Overall Length 145 in
Stand Height 55 in
Weight 8,500LB
Bottom discharge
Driven by a 50 hp, 3/60/230/460 volt motor.
A 100 HP motor also sells with the unit.

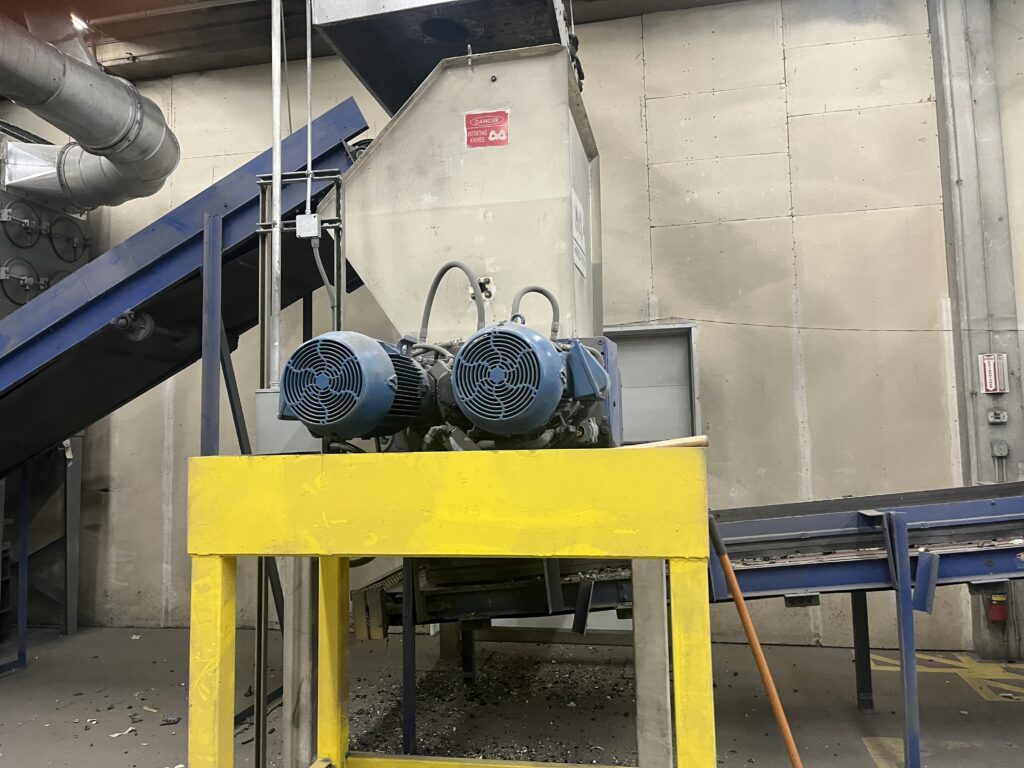

ST-100 Dual Shaft Shredder Item#185
ST 100 Dual Shaft Shredder
Drive Electric
Number of Motors 2 (2-50HP drive motors = 100 HP total)
Cutting Chamber 32”x60 1/2”
Discharge Height 43”
Hopper Height 37”
Hopper Opening 60”x54”
Stand Opening (width) 33”
Stand Opening (length) 93”
Manufacturer in 2012
In 2020, a new Electric Drive Motor was installed along with the following items:
PN 526809 Shred Sub Assy ST–100 RR2500 HS Gears
PN 524746 Spacer Hex ST–100 GRP48
PN 524699, 524700, 524701, 524702, 524703, 524704 Knife 2HK
PN 522426 Finger Floating Assy ST–100 GRP 48
PN 524715 Config ST–100
The other Electric Drive motor was replaced in 2021.
The current owner is using it to shred circuit boards and is replacing it with a new, larger unit.
Stainless Steel Separation Conveyors
With a patent magnetic circuit design of high-intensity neodymium magnets, you can recover up to 98% of small and mid fraction 300 Series Stainless Steel and remove up to 94% of irregular shaped stainless steel from ASR zurik lines – 5” minus in size – from your auto shredding or wire chopping stream. The result is the purest zurik and maximum removal of stainless steel and ferrous dust from wire fraction.
48″ Industrial Magnetics Drum Magnet
18″ diameter
Permanent Rare Earth Magnet
Comes with Stand
Hooked to power
Tapered Shake Table Item#182
Tapered Shake Table
Unit has Coil and Leaf Springs
Dimensions:
Rear Width – 4’ 4”
Front width – 3’
(Contours in)
Length – 19’ 6” (pan only)
Length to motor – 23’
SOLD – American Pulverizer Ringmill
(WATCH VIDEO BELOW)
300HP
Still hooked up to power
Customer processed meatballs, palm transformers, shredder pickings, and asrw.
Ring and pins will be replaced prior to shipping
Liebherr Model 944 Material Handler Item#217
Used Liebherr 944 Material Handler
2007
15,694 Hours (Unit is still being used)
Solid Setco Tires
Dimensions
Max Height
68.9ft in
Max Reach Along Ground
52.5ft in
Max Depth
11.49ft in
Boom/Stick
9.5m boom / 808m stick
Ground Clearance
1.78ft in
Upperstructure Clearance
13.06ft in
Wheelbase
11.82ft in
Specifications
Engine
Gross Power
258hp
Operating Weight W/O Attachment
126300lb
Operating Voltage
24V
Alternator Supplied Amperage
80amps
Swing Speed
8rpm
36″ Industrial Magnetics Drum Magnet
18″ diameter
Hooked to power
Permanent- Rare Earth
Stand and Housing included
Currently being used in reverse and picking the steel up off the end of a
conveyor and dropping it off on another conveyor.
